Maximum Values:
Maximum Altitude = 1404,28 ft.
Maximum Velocity = 331,77 ft/s
Maximum Acceleration = 747,61 ft/s²

Rocket configuration:
Model rocket stage count: 2
Stage 2: 1 * Estes C6 (0,85 oz.)
Stage 1: 1 * Estes C6, 2 * Estes C6 (2,56 oz.)

Download link: Barkasy.roc

Maximum Values:
Maximum Altitude = 3577,22 ft.
Maximum Velocity = 500,08 ft/s
Maximum Acceleration = 329,11 ft/s²

Rocket configuration:
Model rocket stage count: 2
Stage 2: 1 * Estes E9 (2,28 oz.)
Stage 1: 1 * Estes E9 (2,28 oz.)

Download link: Camera.roc

Description:
I currently own a full version of SpaceCAD 3 and have enjoyed it a lot. This is an experimental two-stage I designed which has not been built, but will be flying in a few years time. This rocket is experimental because it carries an onboard camera which takes pictures by a remote control the size of a mobile phone. It also has two E9 rocket engines, a parachute and a few waddings all supplied by Estes. And after designing this rocket with SpaceCAD, it said it was slated to go approximately 1050m flying at over 575,000 km/h off the surface. It's not fast enough to break the sound barrier, but I am also designing over rockets to do that.

Maximum Values:
Maximum Altitude = 4027,87 ft.
Maximum Velocity = 774,50 ft/s
Maximum Acceleration = 721,82 ft/s²

Rocket configuration:
Model rocket stage count: 1
Stage 1: 1 * Aerotech G40 (4,06 oz.)

Download link: fair3.roc

Rocket configuration:
Model rocket stage count: 1
Stage 1: 1 * Aerotech M1315W (5644,80 g)

Download link: norm_level3.roc

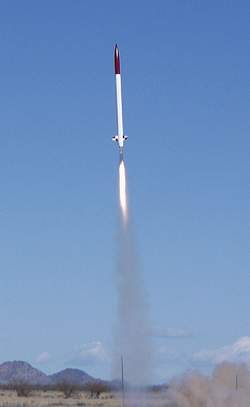

Here is a picture of the test rocket, designed in SpaceCAD, that flew on the booster motor for the Elf Magic project.

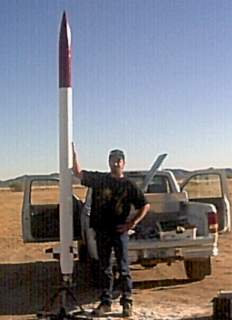

This was a Sorbitol/KNO3 motor that is predicted to be a M-4500. Yes...it's a sugar motor. My hand is about where the top of the motor is. The motor is 75mm in diameter and 55.7 inches long.

It has flown 3 times and recovered perfectly 3 times.

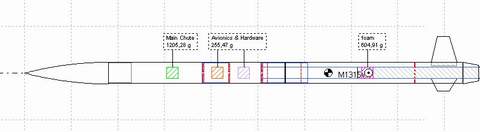

It will be my level-3 rocket. The part of the file that says "foam" is the 2-part expanding polyurethane foam used to hold the fins in and strengthen the booster air frame.

Maximum Values:
Maximum Altitude = 1091.25 ft.
Maximum Velocity = 386.04 ft/s
Maximum Acceleration = 889.74 ft/s²

Rocket configuration:
Model rocket stage count: 1
Stage 1: 1 * Estes C6 (0.85 oz.)

Download link: Green_Hornet.roc

Maximum Values:
Maximum Altitude = 3674.63 ft.
Maximum Velocity = 656.51 ft/s
Maximum Acceleration = 444.50 ft/s²

Rocket configuration:
Model rocket stage count: 1
Stage 1: 1 * Cesaroni Pro38 765-J330 (1.55 lb.)

Download link: Core Sample Sally.roc

Maximum Values:
Maximum Altitude = 162,65 m
Maximum Velocity = 59,70 m/s
Maximum Acceleration = 103,66 m/s²

Rocket configuration:
Model rocket stage count: 1
Stage 1: 1 * Sachsen-Feuerwerk D7 (54,00 g)

Download link: adler-28021.roc

Maximum Values:
Maximum Altitude = 517,44 m
Maximum Velocity = 141,09 m/s
Maximum Acceleration = 159,01 m/s²

Rocket configuration:
Model rocket stage count: 1
Stage 1: 1 * Aerotech H180W (246,40 g)

Download link: harpoon_neu.roc

Description:
This is a 1:4.2 scale model of the ship missile RGM-84 Harpoon. The body tube consists of three layers of 160 g fiber glass. The first flight was on a G 64 motor and it was fantastic!

Maximum Values:
Maximum Altitude = 861,12 m
Maximum Velocity = 215,11 m/s
Maximum Acceleration = 254,91 m/s²

Rocket configuration:
Model rocket stage count: 1
Stage 1: 1 * Aerotech F50 (84,90 g)

Download link: sidewinder.roc

Maximum Values:
Maximum Altitude = 245,19 m
Maximum Velocity = 81,20 m/s
Maximum Acceleration = 266,72 m/s²

Rocket configuration:
Model rocket stage count: 1
Stage 1: 1 * Estes C5 (24,80 g)

Download link: rockit.roc

Maximum Values:
Maximum Altitude = 223,53 m
Maximum Velocity = 83,58 m/s
Maximum Acceleration = 215,94 m/s²

Rocket configuration:
Model rocket stage count: 2
Stage 2: 1 * Estes A8 (16,70 g)
Stage 1: 1 * Estes B6 (19,40 g)

Download link: Autura.roc

Maximum Values:
Maximum Altitude = 4360.89 ft.
Maximum Velocity = 1293.51 ft/s
Maximum Acceleration = 949.05 ft/s²

Rocket configuration:
Model rocket stage count: 1
Stage 1: 1 * Vulcan I283 (15.08 oz.)

Download link: Peacemaker.roc

Maximum Values:
Maximum Altitude = 614.91 ft.
Maximum Velocity = 199.11 ft/s
Maximum Acceleration = 201.85 ft/s²

Rocket configuration:
Model rocket stage count: 1
Stage 1: 1 * Estes E15 (2.07 oz.)

Download link: Snow Storm.roc

Maximum Values:
Maximum Altitude = 992.56 m
Maximum Velocity = 155.12 m/s
Maximum Acceleration = 134.66 m/s²

Rocket configuration:
Model rocket stage count: 1
Stage 1: 1 * R.A.T.T Works H70H (348.99 g)

Download link: NOX.roc

Description:
Rocket designed for R.A.T.T Works hybrids. I have used a H70 but the design will accomodate a I80 quite happily. Note: The two tubes seperated by a coupler do not actually seperate, the coupler is simply there because the Public Missiles phenolic tube does not come in long enough lengths. Everything is a representation of a real component you can buy except the ejection system. The materials database did not come with the correct material for the real nosecone so I just chose a material and increased its thinkness until it was the correct weight.

Parts used for this rocket:
Engine: $104.326 NZD // R.A.T.T Works H70 Hybrid
Propellant: $43.4139 NZD // R.A.T.T Works H70 (3pack)
Parachute: $57.5220 NZD // Rocketman 40" R4C Standard 'Chute
Body Tube: $21.8178 NZD // Public Missiles Phenolic Tube (x2)
Nose Cone: $23.4740 NZD // Public Missiles Conical Nosecone
Tube Coupler: $2.76795 NZD // Public Missiles Tube Coupler

Total: $253.322 NZD
Rounded: $253.30 NZD
Shared: $126.65 NZD (wif a m8)

Maximum Values:
Maximum Altitude = 1049,80 m
Maximum Velocity = 110,54 m/s
Maximum Acceleration = 84,54 m/s²

Rocket configuration:
Model rocket stage count: 1
Stage 1: 1 * U.S. Rockets I40 (512,00 g)

Download link: lolo.roc

Maximum Values:
Maximum Altitude = 796,73 m
Maximum Velocity = 178,22 m/s
Maximum Acceleration = 280,72 m/s²

Rocket configuration:
Model rocket stage count: 2
Stage 2: 1 * Estes C6 (24,20 g)
Stage 1: 1 * Estes C6 (24,20 g)

Download link: BlueStreak 2stage.roc

Maximum Values:
Maximum Altitude = 1920.33 ft.
Maximum Velocity = 525.04 ft/s
Maximum Acceleration = 602.55 ft/s²

Rocket configuration:
Model rocket stage count: 1
Stage 1: 1 * Aerotech I357T (12.33 oz.)

Download link: SAAB.roc

Description:

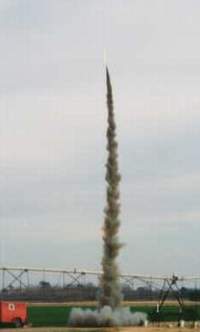

Here are the pictures of my SAAB-RB05A in flight. The first picture (15_15.jpg) is me and the rocket on the pad. The second is a launch on an Aerotech I 300 Blue Thunder (16_16.jpg). The third is a launch on a Pro38 I350 Smokey Sam (19_19.jpg). I really like the Pro38 they zip off the pad in a hurry plus it flew allot higher, around 3000' on that motor. I know I had to walk a lot further to retrieve it.

Maximum Values:
Maximum Altitude = 1060.74 m
Maximum Velocity = 136.03 m/s
Maximum Acceleration = 131.33 m/s²

Rocket configuration:
Model rocket stage count: 3
Stage 3: 3 * Estes E15 (176.10 g)
Stage 2: 3 * Estes D12 (135.60 g)
Stage 1: 2 * Estes E15 (117.40 g)

Download link: orion.roc

Description:
This is a planned construction for a rocket that will be able to take a 280g payload up to 800 meters or more...hopefully it will be launched by early 2004.

Download link: big-gumby1.roc

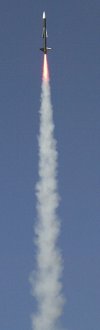

My big rocket flew yesterday, the 28th, IT WAS AWESOME!. The rocket soared to 8,929 feet above ground level and went Mach .92. Well we were hoping it would go transonic due to the temperature but it really kicked butt on the way up. The rocket was dual deployment(drogueless).
Well apparently the 2,500lbs kevlar shock cord had a flaw in it and the payload section and booster parted company.
The booster came in ballistic and the payload section came in ballistic until the main charge fired at 1,500 ft. The booster was damaged severely(I think I can repair it) but I will build another in case. The payload section suffered a small zipper from the high speed deployment of the 2 main chutes.
Lots of pictures were taken as about 200 people showed up to see it go. I thought maybe the club had run an advertisement and thats why so many people were there this month. I commented on the turnout of people and got told by the club president..."You don't know?...They came to see your monster rocket go!"

Maximum Values:
Maximum Altitude = 157,56 m
Maximum Velocity = 59,21 m/s
Maximum Acceleration = 89,81 m/s²

Rocket configuration:
Model rocket stage count: 1
Stage 1: 1 * Aerotech C6 (27,60 g)

Download link: bull_run.roc

Maximum Values:
Maximum Altitude = 148,85 m
Maximum Velocity = 53,87 m/s
Maximum Acceleration = 113,95 m/s²

Rocket configuration:
Model rocket stage count: 1
Stage 1: 1 * Estes C6 (27,20 g)

Download link: quest_big_rage.roc

Maximum Values:
Maximum Altitude = 282,76 m
Maximum Velocity = 91,26 m/s
Maximum Acceleration = 203,67 m/s²

Rocket configuration:
Model rocket stage count: 1
Stage 1: 1 * Estes D12 (54,20 g)

Download link: quest_icarus.roc

Maximum Values:
Maximum Altitude = 920.34 ft.
Maximum Velocity = 524.87 ft/s
Maximum Acceleration = 1266.74 ft/s²

Rocket configuration:
Model rocket stage count: 1
Stage 1: 1 * Aerotech E28 (1.95 oz.)

Download link: ThrustMaster1.roc
